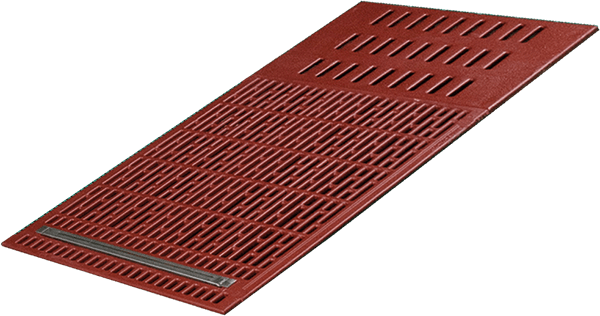

Profil-Step
for straight farrowing crates
15 mm STEP
1.
PROFIL-STEP 15 mm
- high-low structured surface
- straight frame covers perfectly intersections at sides
- even active, mobile piglets injure themselves demonstrably less often
2.

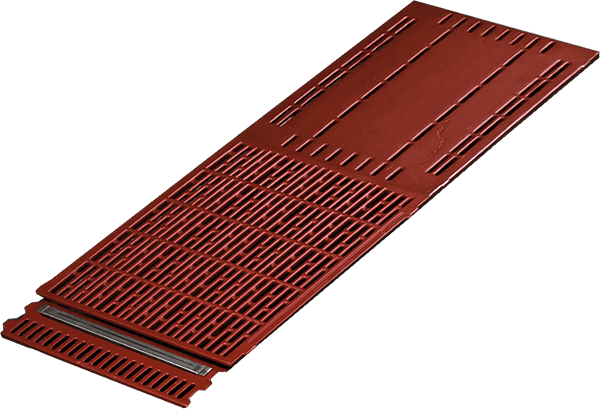

manure slot
- manure slots for more hygiene
- as an additional complement, or integrated within cast iron slat 1200 x 600 mm
- Cover stainless steel
3.
PROFIL-STEP
- stainless steel tabs secure cast iron slats safely between support and PP floors
4.
supports
- secure fixation of supports metal beam guide, Ref. No. 14003
Technical Advice
- width 630 mm, step
- solid area PROFIL-STEP
- centred support at 300 mm possible
- 5 % and 7 % opening
- to be combined
- with all common PP-floors
- frame mode (type-P)
- to be installed as insert
- high-low structured with 2 traction levels
- horizontal foothold at wet and fatty surfaces, also for sows with weak legs
- all types of PROFIL step 15 mm match to each other
- 15 mm step for a perfect cover of interlocking, – reduces therefore injuries and skin lesions at piglets
Products used in this layout
| Ref. No. | measure a x b | |
|---|---|---|
| Cast Iron | ||
| Profil | 26061-600 | 600x630 |
| Profil step | 26120-600-K | 1200x630 |
| Profil | 26101-600 | 1000x630 |
| Profil step | 26100-600 | 1000x630 |
| Cast Iron Manure Slot | ||
| Plana | 15020-600-K | 200x600 |
| Manure slot cover | 15002-600 / V2A | 45x495 |
| Polypropylene Flooring | ||
| Vario | 13060-500 | 600x500 |
| Mentor | 14020-600 | 200x600 |
| Polymere Concrete Heating Pads | ||
| Ratio | 19140-600-WW-ECO+ | 1400x600 |
